Waste Water Effluent from residents premises affects the biological balance of the receiving streams, lakes, river and ground water. The main consideration of waste water treatment should be that the water quality of the stream or ground water is not adversely affected by the discharge of the sewage effluent.
The following are the constituents of any waste water, which are main concern in industrial pollution control and waste treatment.
Industries Effluent water contains different types of impurities and therefore special type of treatment is carried out to meet the treated water as per CPCB Norms.
In these three types of treatment process is carried out

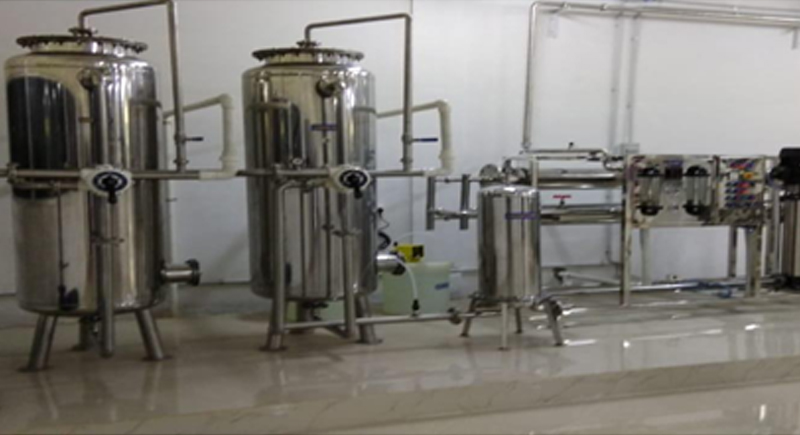

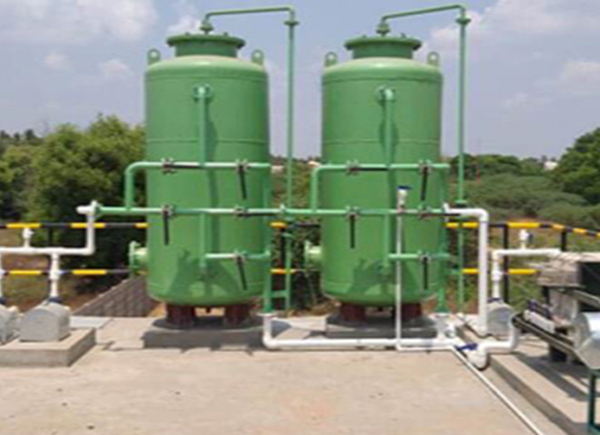

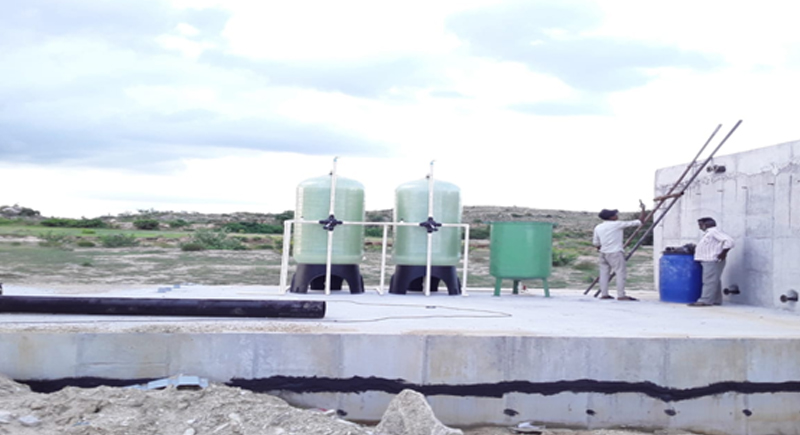

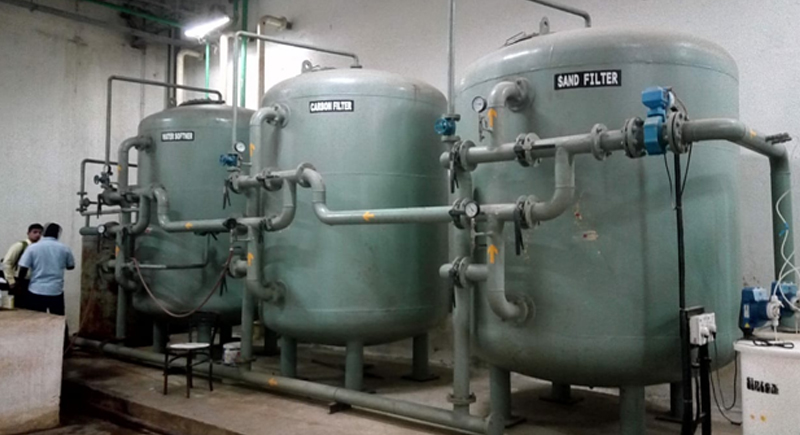

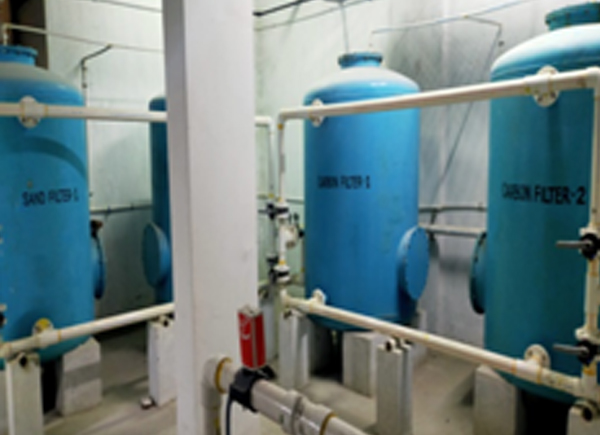

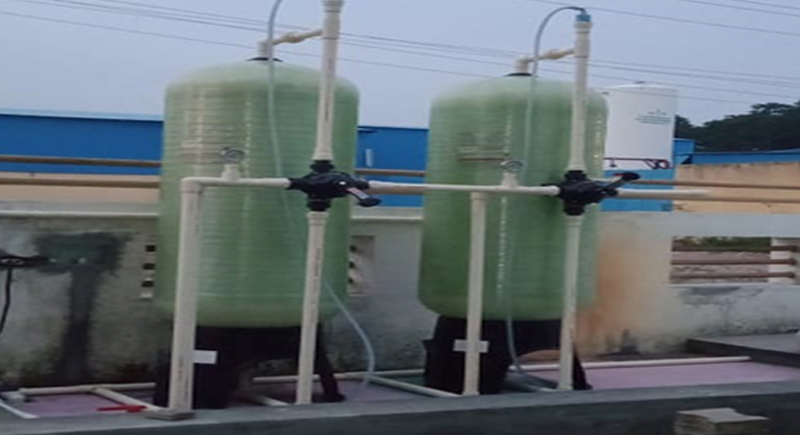

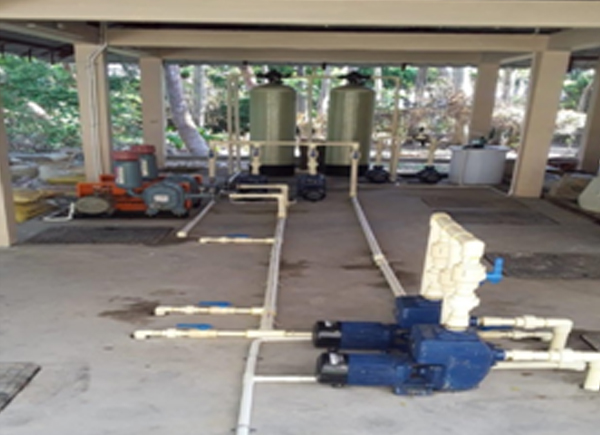

MSV watertech offers wide range of filter to suit various filtration applications .pressure vessels with single media ,dual media /multimedia are offered based on special requirement of the customer . All filters are offered in manual /semiautomatic/Fullyautomatic systems.
This range of filters can handle for the removal of TSS up to 30 ppm ,which consists of filtering media coarse sand, silex&supporting media pebbles ,gravels .filters options are in Prefabricated MSEP/MSRL or FRP
All filter will be designed intervals to ensure evendistrubtion of incoming raw water,uniform collection of filtered treated water and proper backwashing for dirt removal
This range of filters can handle for the removal of TSS up to 30 ppm to 60 ppm ,which consists of filtering media coarse sand,fine sand additional , silex&supporting media pebbles ,gravels .filters options are in Prefabricated MSEP/MSRL or FRP
All filter will be designed intervals to ensure evendistrubtion of incoming raw water,uniform collection of filtered treated water and proper backwashing for dirt removal
This range of filters can handle for the removal of TSS up to 30 ppm with colour ,odour,organics ,which consists of combination of special media anthracite, filtering media coarse sand, silex&supporting media pebbles ,gravels .filters options are in Prefabricated MSEP/MSRL or FRP
All filter will be designed intervals to ensure evendistrubtion of incoming raw water,uniform collection of filtered treated water and proper backwashing for dirt removal
This range of filters can handle for the removal of colour ,odour,organics ,which consists of combination of special media activated carbon with iodine valve 600 -1200 iv based on client inlet raw water quality, filtering media silex&supporting media pebbles ,gravels .filters options are in Prefabricated MSEP/MSRL or FRP
All filter will be designed intervals to ensure evendistrubtion of incoming raw water,uniform collection of filtered treated water and proper backwashing for dirt removal
This range of filters can handle for the removal of iron up to 6 ppm present in inlet raw water ,which consists of combination of special media MNO2 /Green Sand based on client inlet raw water quality, filtering media silex&supporting media pebbles ,gravels .filters options are in Prefabricated MSEP/MSRL or FRP
All filter will be designed intervals to ensure evendistrubtion of incoming raw water,uniform collection of filtered treated water and proper backwashing for dirt removal

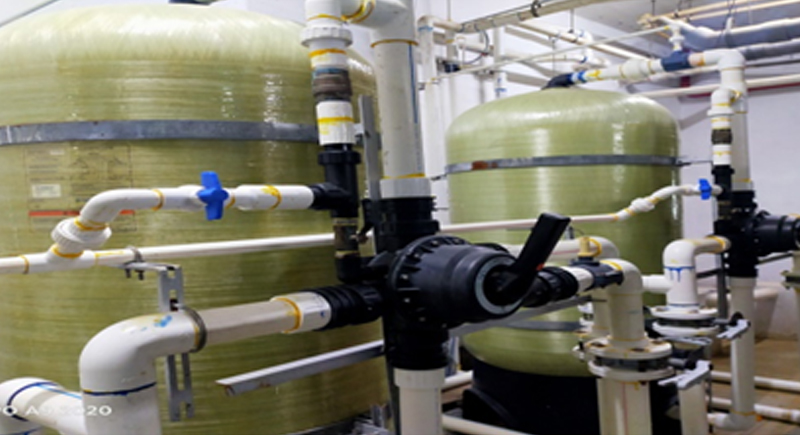

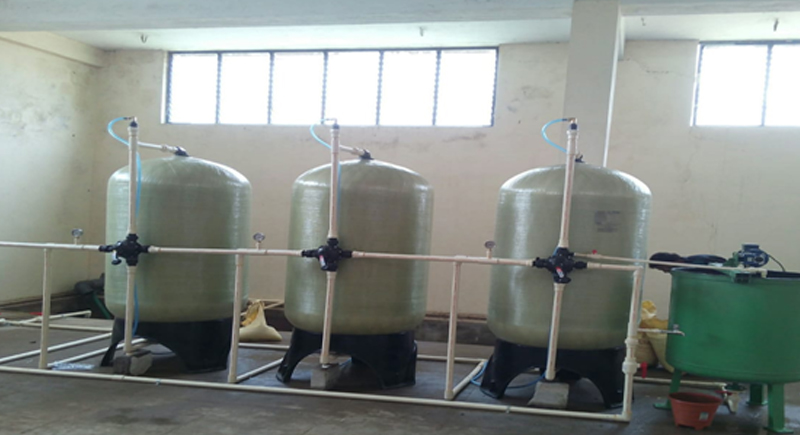

MSV Watertechoffer PreEngineered softener system of MOC FRP/MSEP/MSRL for medium &small, large industries /Residential complex/commercial complex etc
Softeners are strong acidcation resin in sodium form to exchange the hardness salts present in raw water
All softeners are inbuilt regeneration system with brine tank .Both co current &counter current regeneration are offered based on raw water inlet quality
MSV Watertechoffer PreEngineered DM system consists of two pressure vessels namely strong acid cation (SAC) strong base anion (SBA) resin respectively of MOC FRP/MSEP/MSRL for medium &small large industries /Residential complex/commercial complex etc
All DM Plant are inbuilt regeneration system with chemical regeneration tank .Both co current &counter current regeneration are offered based on raw water inlet quality
MSV WATER TECH offer Pre Engineered MB system consists of One pressure vessels contains cation resin & anion resin respectively of MOC FRP/MSEP/MSRL for medium &small large industries /Residential complex/commercial complex etc
All MB Plant are inbuilt regeneration system with chemical regeneration tank .Both co current &counter current regeneration are offered based on raw water inlet quality

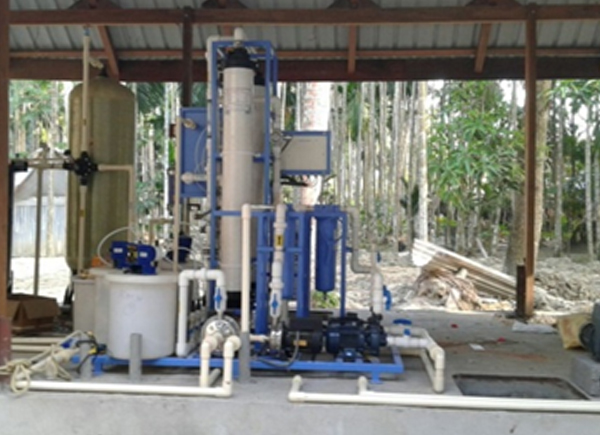

It is a membrane cross flow filtration process used to separate and remove micro molecules, colloidal, and pathogenic microorganisms from the solvent by molecular weight and size, substance smaller than the price size of the membrane are passed while large solutes or particles are rejected.
It is done before RO system for increase the life time of the membrane

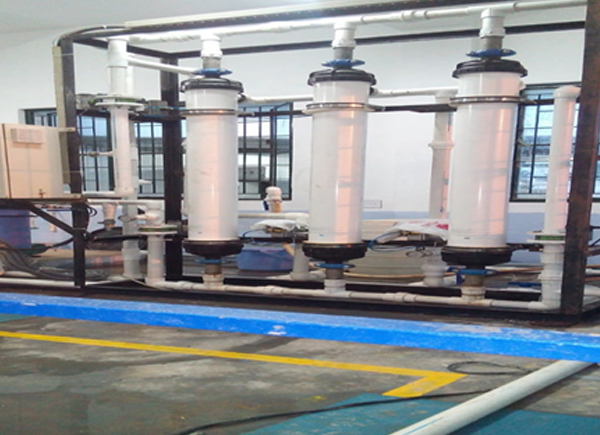

MSV Watertech offer latest technology hollow fiber UF membrane pore size 0.01-0.05 um and have high removal of bacteria & virus colloiods ,silt. It is used for pretreatment of removal of colloidal silica

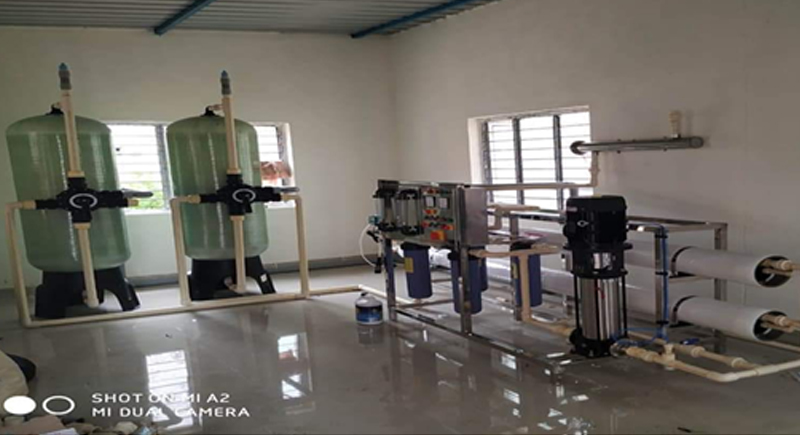

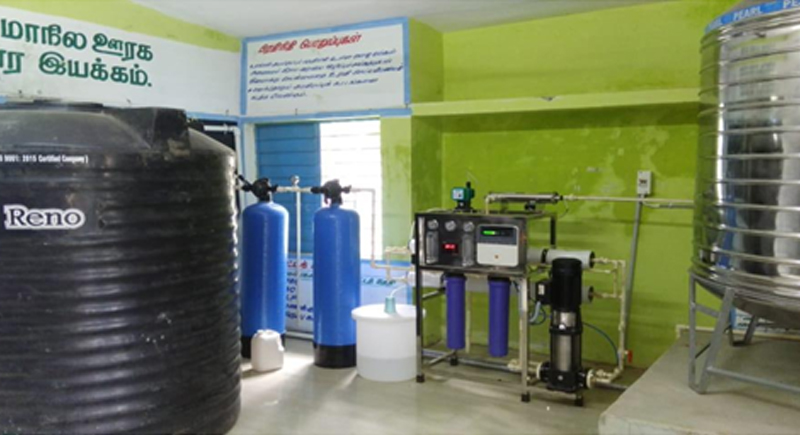

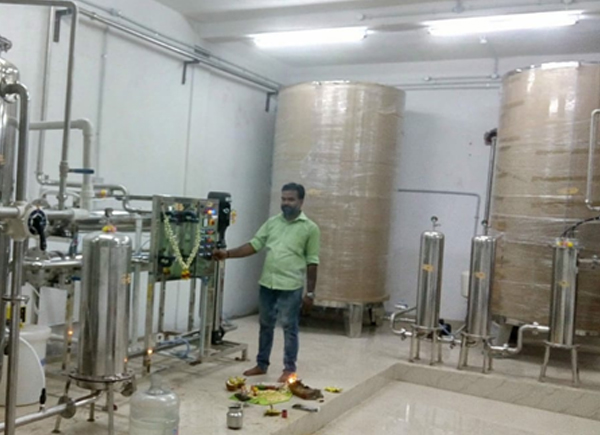

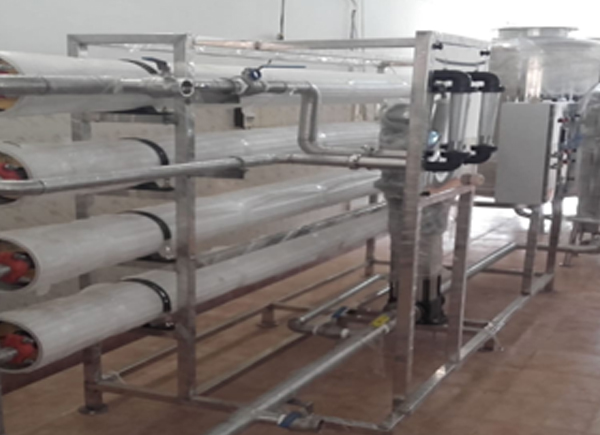

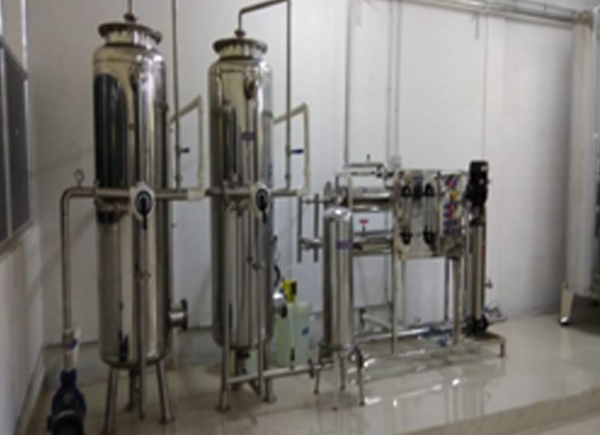

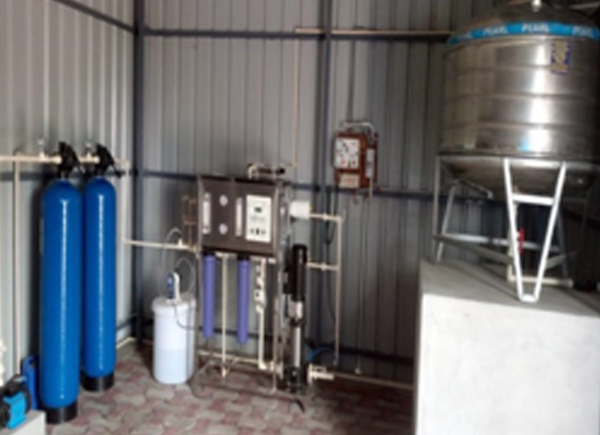

The main purpose of the RO system is used for the removal of Total Dissolved Solids (TDS). we offers spiral wound membrane for both brackish water &sea water applications The reverse osmosis block is made in compact skid of MOC powdered coated/Stainless steel with pumps, pipings&instruments etc the pipings will be SS304/SS316 material of construction
When fresh water and a salt solution are separated by semi permeable membrane water will diffuse from the fresh water side in to the salt solution. This phenomenon is called “Osmosis”.
When a pressure greater than the osmotic pressure is applied to the concentrated solution, water flows from the concentrated to the dilute solution side. The flow of water through a semi-permeable membrane from the more concentrated solution in to the dilute solution is called “Reverse Osmosis”
It is a membrane cross flow filtration process used to separate and remove micro molecules, colloidal, and pathogenic microorganisms from the solvent by molecular weight and size, substance smaller than the price size of the membrane are passed while large solutes or particles are rejected.
It is done before RO system for increase the life time of the membrane
MSV Watertech offer latest technology hollow fiber UF membrane pore size 0.01-0.05 um and have high removal of bacteria & virus colloiods ,silt. It is used for pretreatment of removal of colloidal silica
The main purpose of the RO system is used for the removal of Total Dissolved Solids (TDS).
we offers spiral wound membrane for both brackish water &sea water applications
The reverse osmosis block is made in compact skid of MOC powdered coated/Stainless steel with pumps, pipings&instruments etc the pipings will be SS304/SS316 material of construction
When fresh water and a salt solution are separated by semi permeable membrane water will diffuse from the fresh water side in to the salt solution. This phenomenon is called “Osmosis”.
When a pressure greater than the osmotic pressure is applied to the concentrated solution, water flows from the concentrated to the dilute solution side. The flow of water through a semi-permeable membrane from the more concentrated solution in to the dilute solution is called “Reverse Osmosis”

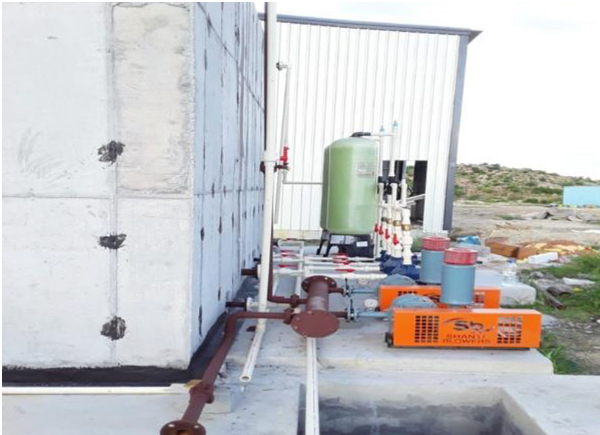

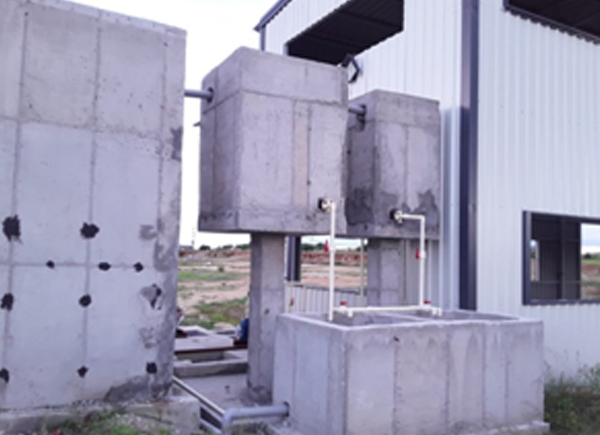

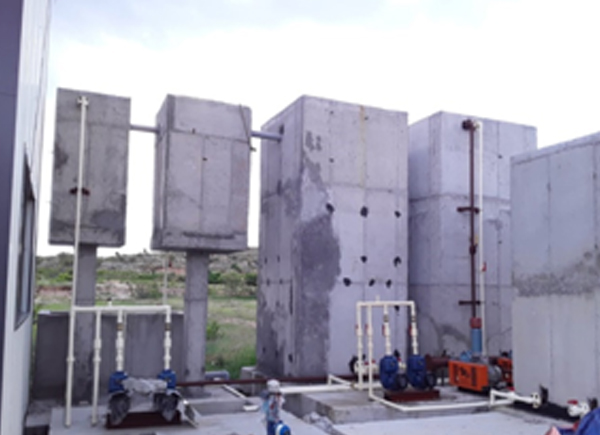

It combines various types of waste water treatment technologies including biological treatment , UF system ,RO Water recycling ,evaporation ponds, mechanical evaporators ,electrical evaporators .
These system recycle water streams such as
